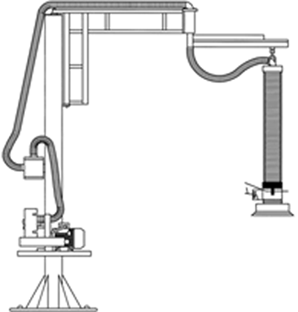

VacuHoist Systems and Sizes
Model
#		 Capacity Motor/Compressor Lift
Tube Diameter
VH90A 40 lbs. Venturi Vac. Pump 90mm/3.54″
VH90E 50 lbs. 2 HP Rotary Vane 90mm/3.54″
VH120 95 lbs. 5 HP/Vac. Compressor 120mm/4.72″
VH120-II 95 lbs. 5 HP/Vac. Compressor 120mm/4.72″
VH160 150 lbs. 5 HP/Vac. Compressor 160mm/6.3″
VH160-II 150 lbs. 5 HP/Vac. Compressor 160mm/6.3″
VH180 225 lbs. 5 HP/Vac. Compressor 180mm/7.125″
VH180T 275 lbs. 7.5 Extra Capacity Compressor 180mm/7.125″
VH2160 300 lbs. 5 HP/Vac. Compressor 2 x 160mm/6.3″ ea
VH2180 350 lbs. 7.5 HP/Extra Capacity Compressor 2 x 180mm/7.125″ ea
VH3180 550 lbs. 7.5 HP/Extra Capacity Compressor 3 x 180mm/7.125″ ea
VH4160 600 lbs. 5 HP/Vac. Compressor 4 x 160mm/4 x 6.3″ ea
Motor Specs: 50/60 Hz, 3 Phase 208/230/460
Volt Motor, TEPC
